Active Optical Cable (AOC) vs. HDBaseT Extenders: Which is Best for Your 8K Project?

For years, HDBaseT extenders were the gold standard for long-distance signal transmission. However, the arrival of HDMI 2.1 8K@60Hz/4K@120Hz has shifted the landscape. With bandwidth requirements jumping from 18Gbps to 48Gbps, copper-based extenders are hitting a physical bottleneck.

If you are an integrator designing a modern boardroom, esports arena, or medical facility, you are likely facing the dilemma: Stick with bulky extenders or switch to Active Optical Cables (AOC). At the same time, many professionals researching solutions will also come across the question of HDBaseT vs HDMI—which essentially compares extending HDMI signals over category cables versus using direct HDMI connections, including advanced options like HDMI AOC. Here is the technical breakdown.

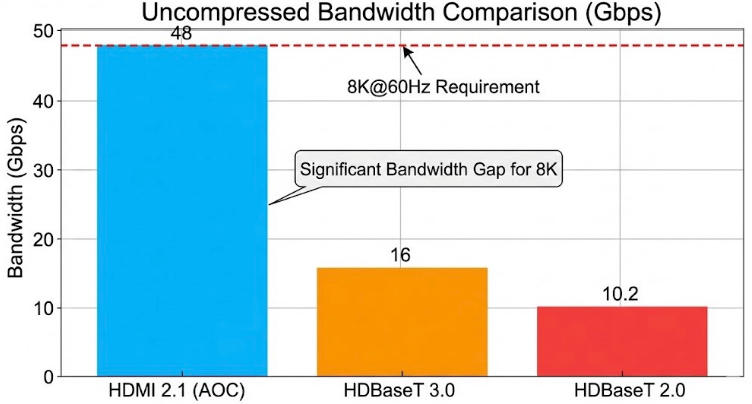

Bandwidth & Compression: HDBaseT vs HDMI (AOC) at 48Gbps

HDBaseT: Most standard HDBaseT 2.0/3.0 solutions struggle with uncompressed 48Gbps. They often rely on DSC (Display Stream Compression) to fit the signal over CAT6a cables, which can introduce minor latency or artifacts—unacceptable for high-precision applications.

HDMI AOC: Our Armored 8K HDMI 2.1 cable utilizes 4-core optical fiber to transmit full 48Gbps bandwidth uncompressed. What you input is exactly what is displayed, with zero frame drops.

Point of Failure Analysis

In B2B integration, simplicity equals reliability.

Extender Setup: Requires a Transmitter (Tx), a Receiver (Rx), two power supplies, two short HDMI cables, and one CAT cable. That is 6 potential points of failure.

AOC Setup: A single cable connecting Source to Display. 1 point of failure.

Takeaway: Fewer connection points mean fewer service calls.

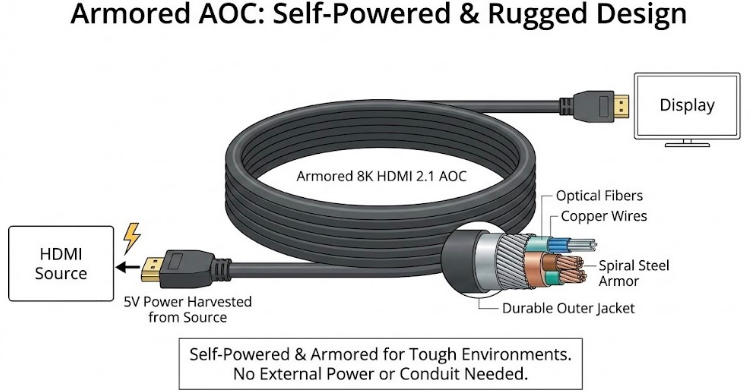

Installation Environment & Power

HDBaseT often requires external power (PoH or power bricks), cluttering the rack or display mount. Active Optical Cables harvest power directly from the HDMI source (5V). Furthermore, if you choose an Armored AOC, you get the tensile strength of a CAT cable with the bandwidth of fiber, without needing conduit protection in some scenarios.

Conclusion: When to Choose AOC?

For runs between 10m and 100m, active optical cable (AOC) is now the superior choice in terms of:

• Cost: Significantly cheaper than a high-end HDBaseT 3.0 kit.

• Performance: Native 8K support without compression.

• Stability: Immune to EMI/RFI.

• Upgrade Your Standard: Stop troubleshooting extenders. [Shop Armored 8K HDMI 2.1 AOC - The Integrator’s Choice]
