How Detachable HDMI Cables Simplify Cable Routing in Professional AV Projects?

Whether installing home theater setups, conference room systems, LED video walls, or broadcast systems, pulling HDMI cables through conduits is often a challenge. Since the connector is typically the bulkiest part of the cable, it is difficult to maneuver the cable through narrow conduits.

For technicians performing installations involving pre-installed conduits or space-constrained environments, connector size can quickly become a limiting factor in the deployment process.

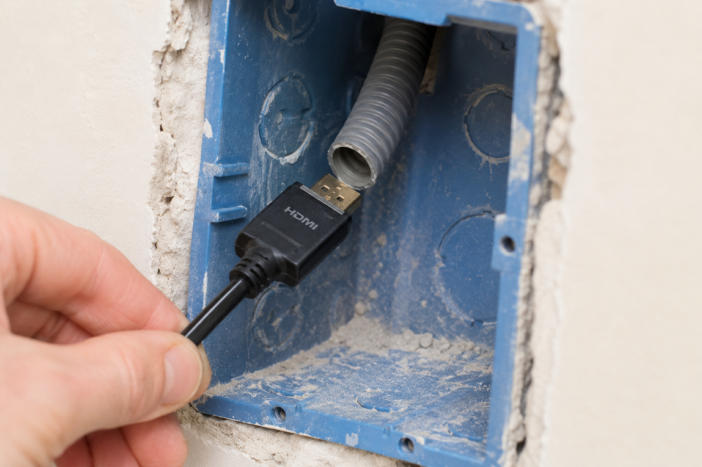

Cable end is far too tick to fit in

This is precisely where the 8K HDMI AOC with a detachable connector demonstrates its immense value.

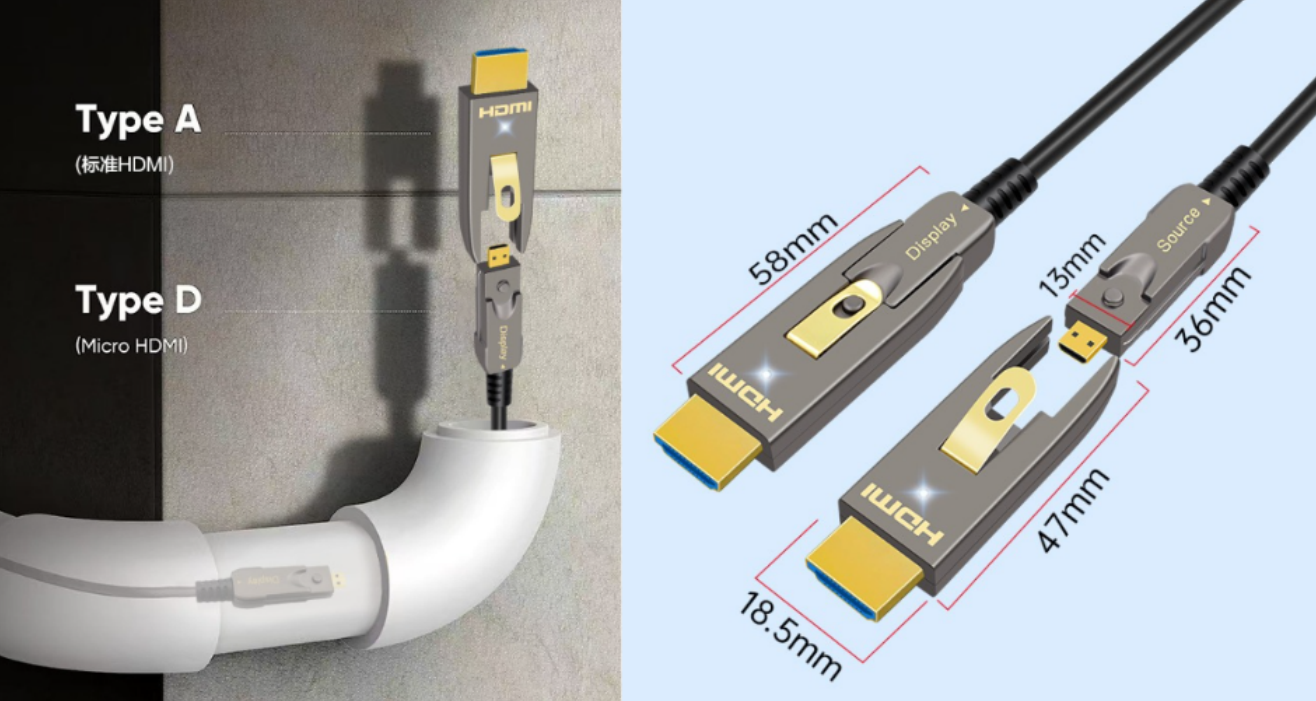

Instead of forcing a full-sized HDMI connector through a conduit, installers can first route the much smaller Micro HDMI end through the conduit, wall cavity, or cable tray. Once the cable is in place, the standard HDMI connector can be attached on-site.

For installations involving narrow conduits, multiple bends, or existing cable pathways, this design significantly simplifies the installation process. It reduces the risk of the connector getting stuck, minimizes the likelihood of damage during cable pulling, and often eliminates the need to widen conduit openings.

In projects such as home theaters, conference rooms, classrooms, and commercial AV systems, detachable HDMI connectors not only save substantial installation time but also make cable routing easier and more manageable.

The advantages of this detachable HDMI cable don't stop there. This detachable HDMI uses a hybrid design with 4-core fiber and multiple copper wires, powered by a built-in smart chipset for efficient optical-electrical conversion and EMI-free transmission. Its LED indicator shows whether the connection is normal. It can withstand a tensile force of 33 pounds. The industrial-grade TPU jacket provides a wide operating temperature range (-40°C to +80°C).

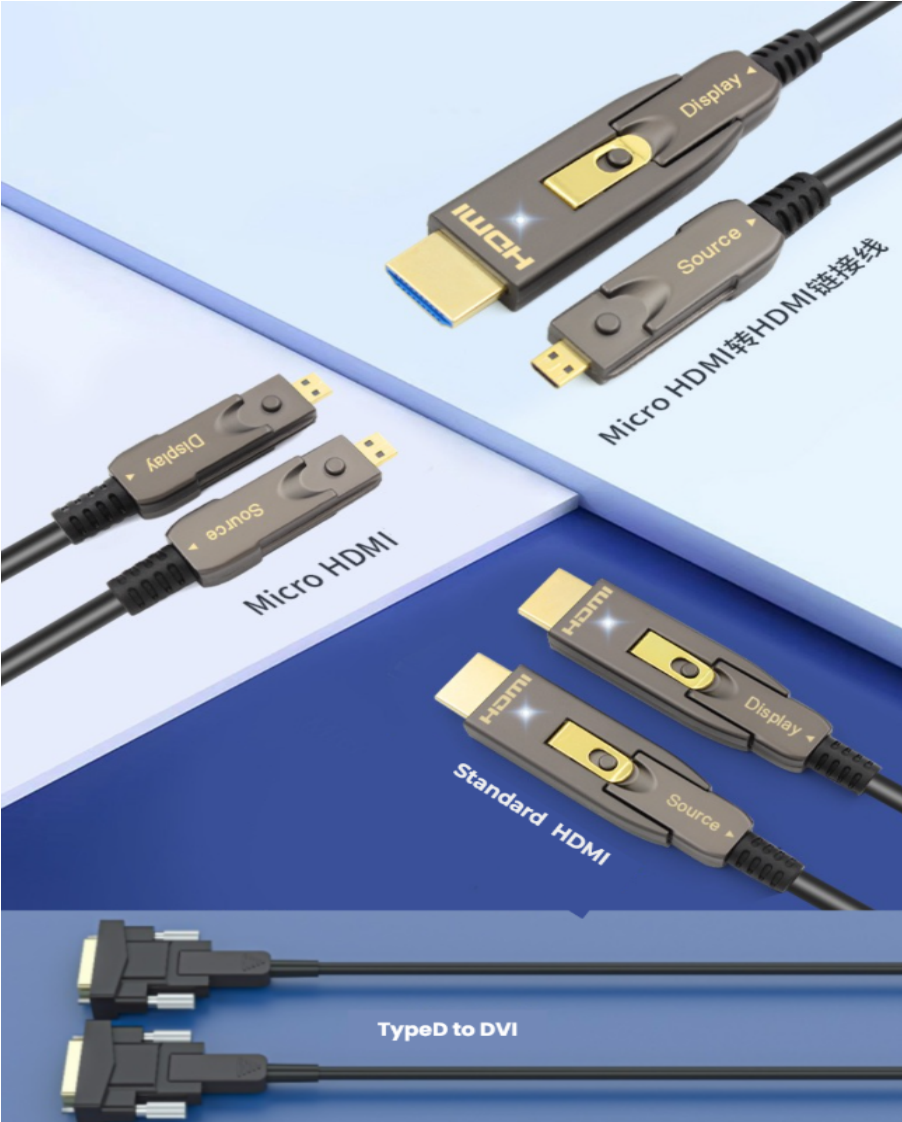

Thanks to a core modular architecture, this cable system offers superior configuration flexibility at the physical layer. The Micro HDMI (Type-D) end connects directly to digital cameras, mirrorless cameras, or portable monitors, while the receiving end allows for the interchangeable use of standard HDMI (Type-A) or DVI interface modules based on specific on-site equipment requirements.

This swappable connector design enables a single fiber-optic link to switch between standards—such as HDMI and DVI—facilitating asymmetric connections (e.g., Micro HDMI to HDMI or DVI) and supporting direct DVI-to-DVI connections often required in industrial or legacy systems.

Essentially, this design shifts interface standards from "fixed, hard-wired configurations" to "field-configurable options," significantly enhancing cross-system compatibility and deployment efficiency.

In real-world installations, it’s often the small details that make the biggest difference.A detachable design may seem simple, but it solves a very practical problem, making cable routing easier, reducing installation risks, and saving time on-site. Combined with stable high-bandwidth performance,boasting 48Gbps bandwidth, supporting 8K@60Hz resolution with 4:4:4 dice sampling, HDR, eARC format, and no signal loss. Supporting EDID and self-detection, these EMI-resistant detachable fiber optic HDMI cables comply with the HDMI 2.1 specification, delivering unparalleled picture quality. it’s a solution built not just for specs, but for how projects are actually delivered.
