HDMI 2.2 Technology Explained

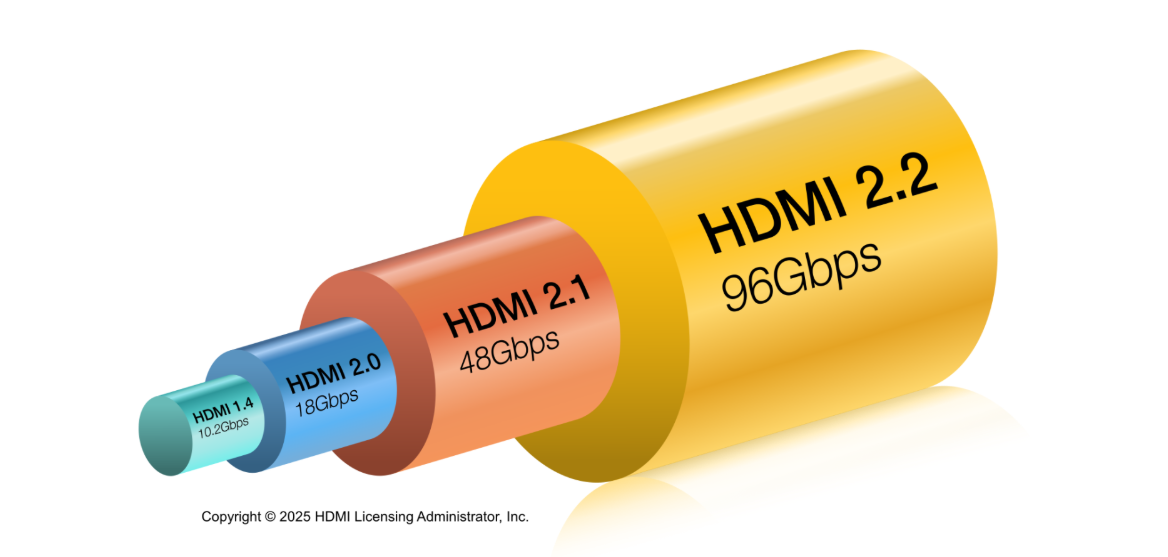

The HDMI 2.2 specification is the latest HDMI standard, bringing expanded options to the vast HDMI ecosystem and offering advanced solutions for creating, distributing, and experiencing optimal display performance on end devices. Higher bandwidth (96Gbps) and next-generation HDMI Fixed Rate Link technology deliver superior audio and video quality across a wide range of device applications. End users can rest assured that their display devices will optimally support native video formats, ensuring a smooth and reliable experience.

HDMI 2.2 supports uncompressed 10-bit and 12-bit video specifications at 4K 240Hz and above, while enabling 8K/60Hz 4:4:4 full-color gamut transmission. In addition to maintaining backward compatibility with HDMI 2.1 and HDMI 1.4, it introduces HDMI Fixed Rate Link (FRL) technology, boosting transmission bandwidth to a maximum of 96Gbps. This provides ample capacity for audiovisual content requiring higher resolutions, higher refresh rates, and larger data volumes.

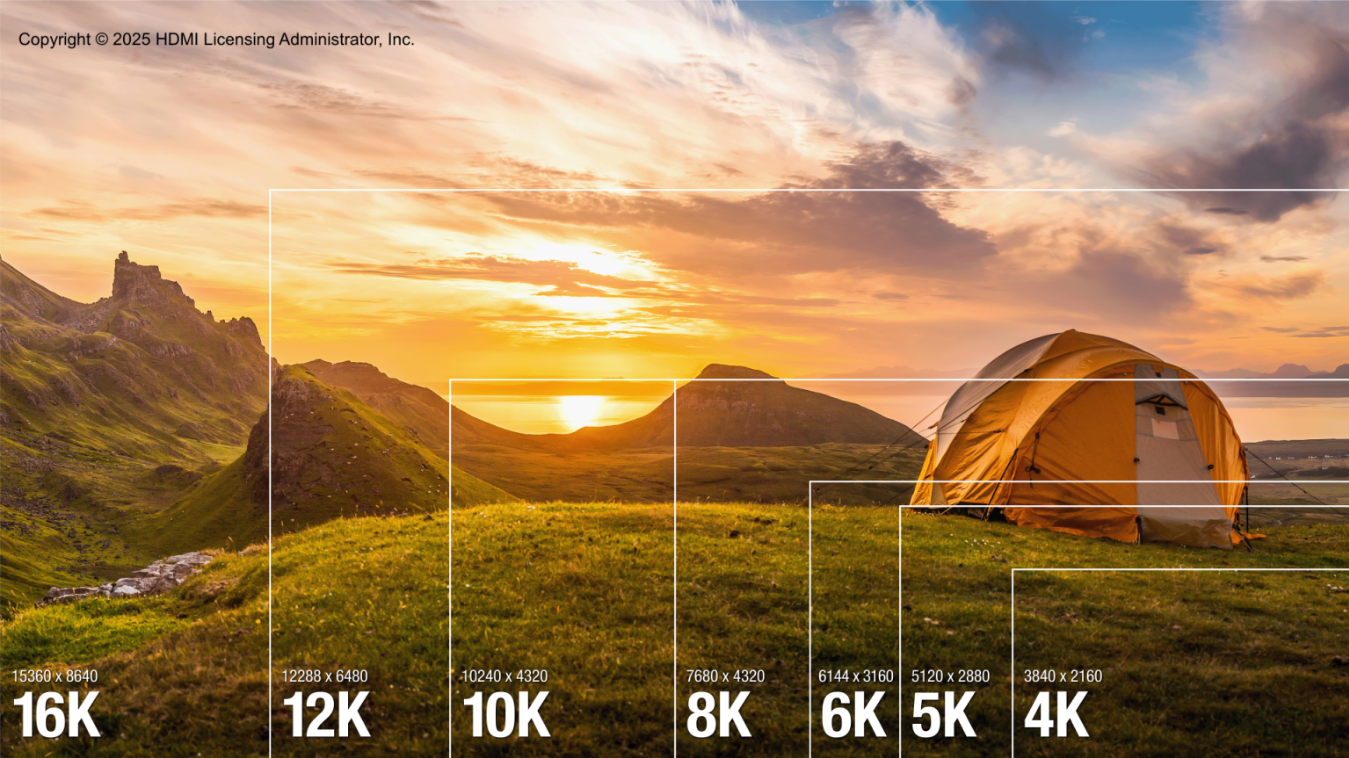

Furthermore, by incorporating DSC (Display Stream Compression) technology, HDMI 2.2 supports transmission at resolutions up to 12K, meeting the demands of next-generation ultra-high-resolution displays while balancing image quality and bandwidth efficiency.

The increased bandwidth and enhanced video specifications offer greater creative possibilities for film and video production, esports, and professional display sectors. They also drive the development of various high-end applications, including large-scale digital signage, medical imaging equipment, and esports monitors, as well as emerging immersive technologies such as AR, VR, MR, and XR.

Key features of the HDMI 2.2 specification include:

· With bandwidth of up to 96Gbps and next-generation HDMI Fixed Rate Link (FRL) technology, it delivers superior audio and video performance for a wide range of device applications. Supported resolutions include 4K/240 and 8K/60—both uncompressed and full-chroma, with support for 10-bit and 12-bit color—as well as 10K, 12K, and 16K resolutions.

· The Latency Indication Protocol (LIP) is an improvement over existing audio-video synchronization methods; it more effectively enhances synchronization performance and is particularly suitable for multi-stage transmission system configurations (such as systems featuring A/V receivers or soundbars).

· eARC simplifies connectivity, supports advanced audio formats and high-quality sound, and ensures seamless compatibility with HDMI 2.1b devices:

o Auto Low Latency Mode (ALLM) automatically enables the optimal low-latency setting for a smoother, more responsive viewing and gaming experience.

o Quick Frame Transport (QFT) reduces latency for smoother, more responsive gaming and real-time virtual reality experiences.

o Variable Refresh Rate(VRR)reduces lag, stuttering, and screen tearing for smoother, more responsive gameplay.

· Quick Media Switching (QMS) eliminates the delay and blank screen that can occur when switching between different HDMI frame rates.

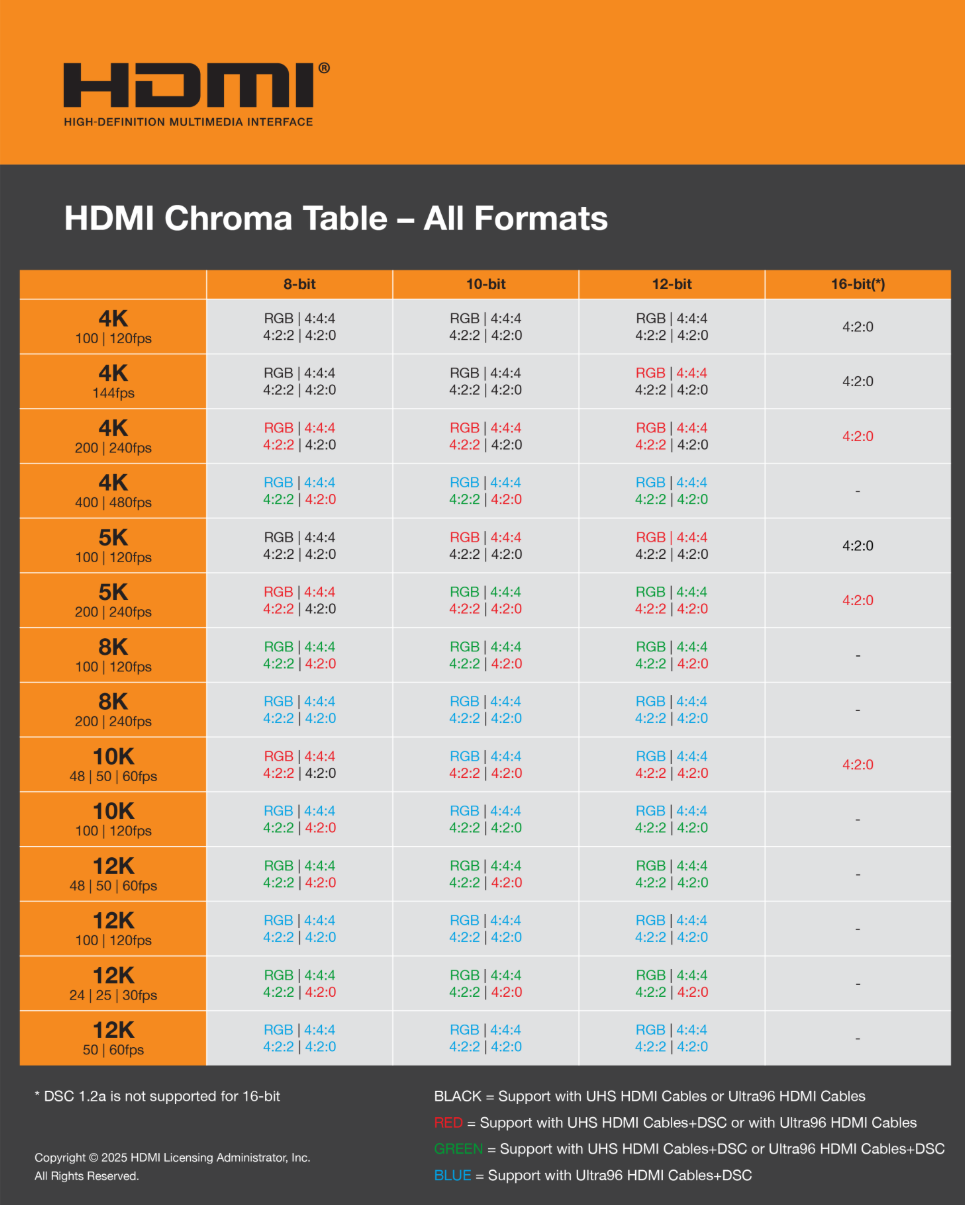

HDMI2.2 Chroma Table

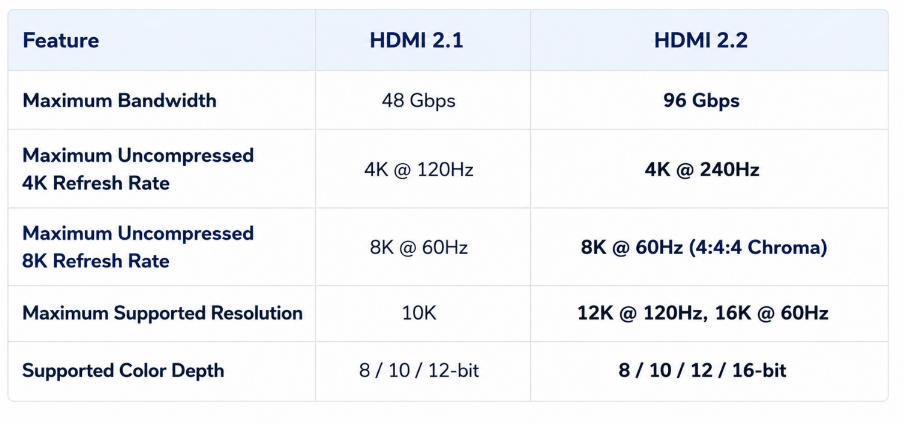

Comparison between HDMI 2.2 and HDMI 2.1

The key advantage of 96 Gbps bandwidth is its ability to natively support high refresh rates, deep color, and full 4:4:4 chroma sampling without relying on DSC. This preserves image quality and minimizes latency, even in the most demanding applications.

The launch of HDMI 2.2 marks a major milestone in the evolution of display interface technology. More than just doubling bandwidth, it lays the foundation for a new generation of high-resolution, high-performance, and immersive audiovisual experiences.

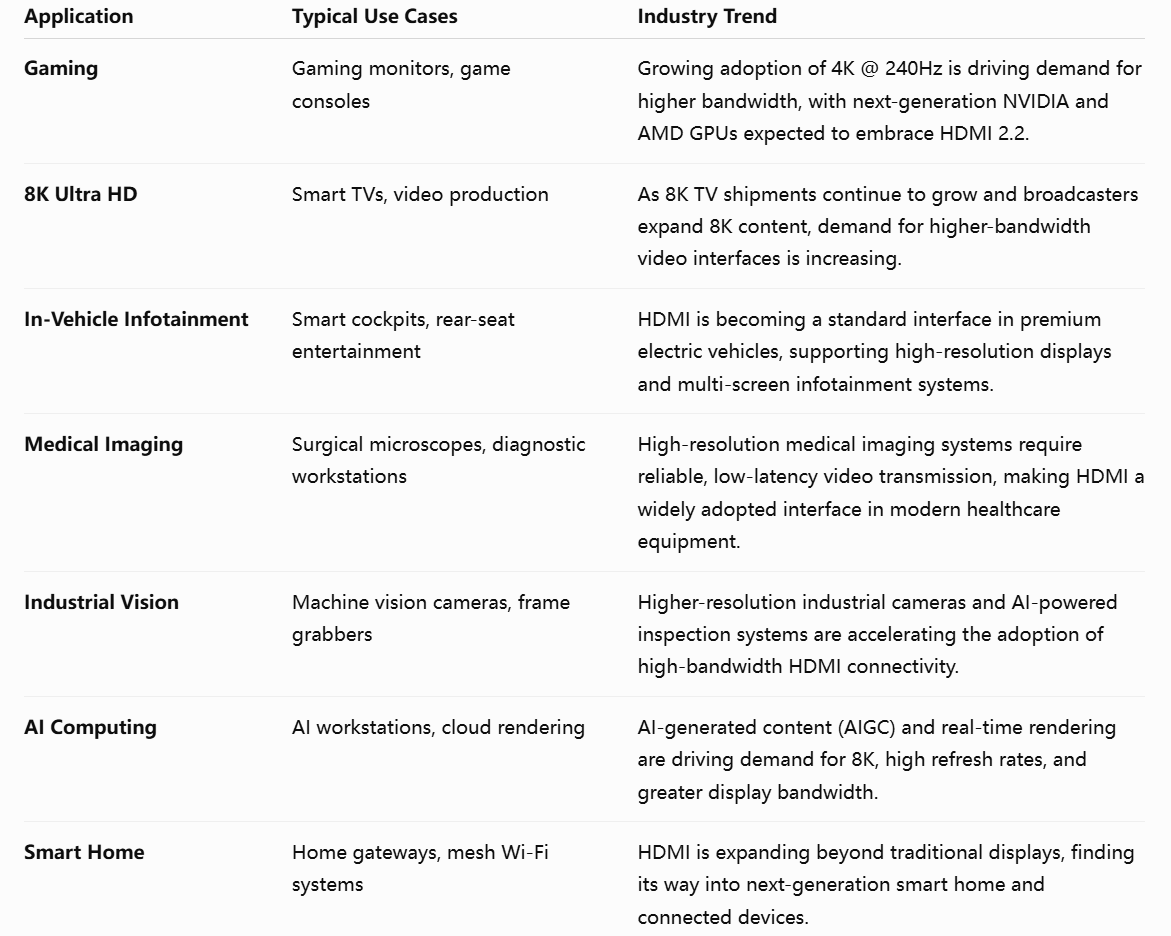

Application Scenarios: Which sectors are seeing surging demand for HDMI
